G2 audio engine and router frame

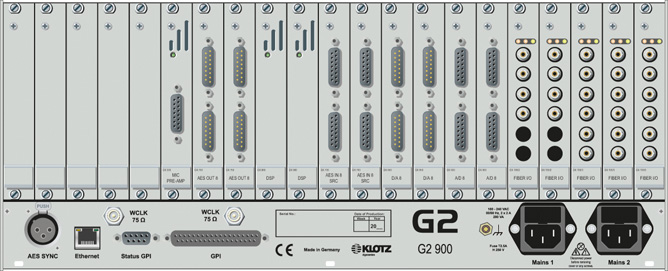

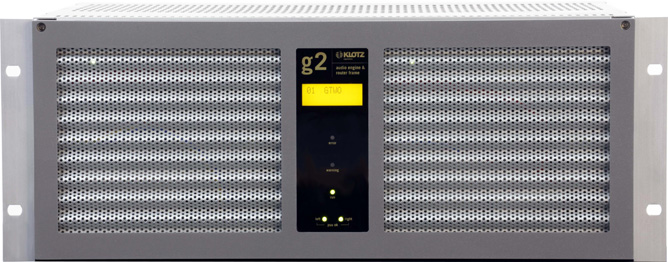

G2 audio engine and router frame - front view and rear view
The G2 audio engine hosts a DSP farm powerful enough for 32 equalizers, 32 dynamics, up to 256 mixing channels and a 64 x 64 mix minus matrix. 21 plug-in positions can be equipped with analogue and digital interface cards, fiber optic transceivers and MADI cards. Audio-over-IP interface cards for DANTE-protocol (trademark registered for Audinate Pty Ltd) and Ethernet AVB will be available shortly.
G2 audio engines and router frames as well as G2 audio interface cards can be controlled by either DC 3, integra or GEON consoles and can also be used in combination with existing VADIS* based installations.
G2 interface cards:
| Audio Input Cards | ||
| DX 300 | DIGX 4MIC | 4 ch - mic preamp with 24 bit A/D converters |
| DX 600 | DIGX 8AD | 8 ch - A/D card 24 bit |
| DX 700 | DIGX 8AESIN | 8 ch. AES/EBU input card with SRC, 75/110 Ohm switchable |
| Audio Output Cards | ||
| DX 650 | DIGX 8DA | 8 ch - D/A 24bit |
| DX 750 | DIGX 8 AESOUT | 8 ch. AES/EBU output card, 75/110 Ohm switchable |
| Signal Processing Cards | ||
| DX 960 | DIGX DSP | DSP card (Mixing, Gain, Levelmeter, EQ, Dyn) |
| Audio Network Cards | ||
| DX 100 | DIGX FIO1 | 64 Ch - Fiber-IO card (multimode) with one TransCeiver (RxTx) |
| DX 100/2 | DIGX FIO2 | DX 100 with two parallel Transceivers |
| DX 100/3 | DIGX FIO3 | DX 100 with two parallel Transceivers and two additional FIO TX |
| DX 200 | DIGX MADIFIO1 | 64 Ch - MADI Fiber-IO card with one TransCeiver (RxTx) w.o. sync. |
| DX 200/2 | DIGXMADIFIO2 | DX 200/1 with two parallel Transceivers |
| DX 200/3 | DIGX MADIFIO3 | DX 200/1 with two parallel Transceivers and two additional FIO TX |
