Integra mr2 radio broadcast system –
two consoles, one network, half the price

Modular design concept for multi-room broadcast facilities, designed to simplify your broadcast needs

Top features:

  • supports two graphite two consoles (typically on-air and production) which operate completely independently
  • G2 audio processing frame included
  • sophisticated suite of Broadcast Productivity Applications (BPS) included
  • due to modular design the system can grow to meet future needs
  • mr2 console surfaces with 12 or 16 programmable faders which can be physically arranged in split or in-line configurations

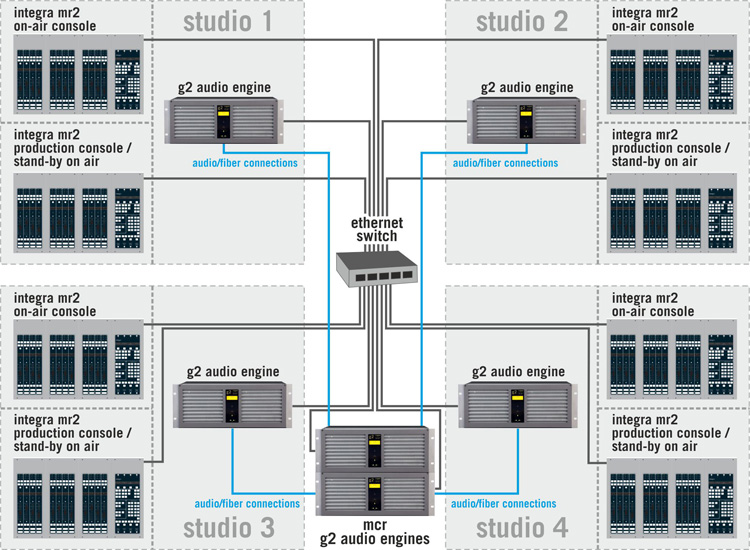

  • multiple mr2 console systems can be combined to create systems for 4, 6 or 8 studios
  • system software continuously monitors console status and provides mirroring and auto-switch over to the second console in the event problems are detected in the on-air console
  • can be implemented on a local basis or centralized in a MCR
  • all communication monitoring and control is provided over TCP/IP
  • common facility resources, such as station automation, codecs and telephone hybrids can be centralized and freely assigned to any studio
  • Control Network via TCP/IP
  • Dante® AoIP optional
  • Networking with MADI + VADIS fiber optic connection optional

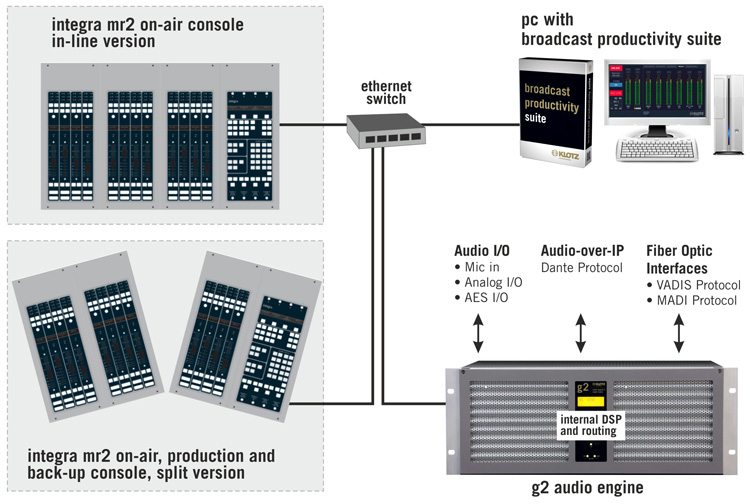

mr2 is a new modular design concept for multi-room broadcast facilities. mr2 simplifies broadcast by combining 2 studios, typically On-Air and Production on a single processing engine. mr2 systems are highly scaleable and can be used for single frequency stations, mid sized radio broadcast clusters and larger networks.



mr2 supports 2 Integra consoles which operate completly independantly, system software continuously monitors console status and provides mirroring and auto-switch over to the second console in the event problems are detected in the On-Air console.



mr2 studio systems can be implemented on a local basis or centralized in a MCR. All communication monitoring and control is provided over TCP/IP. Common facility resources, such as station automation, codecs and telephone hybrids can be centralized and freely assigned to any studio.



mr2 is a combination of renowned Klotz Communications hardware with a sophisticated suite of broadcast productivity applications to create a flexible, cost-effective solution which is easy to set-up and maintain.

mr2 has been designed as a fully integrated solution to simplify your broadcast needs.

Download Integra mr2 flyer
